Urban buildings can save millions of liters of portable water each year by harvesting rainwater for non potable uses like toilet flushing, irrigation and cooling tower make up.Water tree provides complete design/build systems custom tailored to each building. Rainwater harvesting is the most common system to utilize rain water and water tree specializes in rainwater harvesting systems, unlike the traditional methods employed.
Our Rainwater harvesting systems are designed with technology bound commercial-grade components and sophisticated controls required for reliability, automated functions and durability.The revolutionary Aquifer filter, sets a new standard in rainwater filtering Filtering multiple pipes at a single point, the Aquifer's comes with an option of unique 3 layer filtering system The Rain water stored through Aquifer filter can take care of your domestic water requirement for most part of the year The aquifer filter can significantly increase your water catchment efficiency, even at high flow rates 95 at 10 liters per second in wet systems).

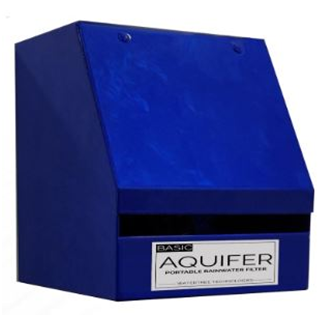

BASIC AQUIFER
BASIC Aquifer - The portable Rainwater Harvesting Filter is a single screen filter suitable for Individual households, Schools, and Smaller Roof area Buildings.
Description
Size : 9’’ L x 9’’ B x 10’’ H
Item Code : BASIC Aquifer
Suitable up to area : 1200 SFT
Max : Intensity of Rainfall: 3 Inches/hr
Working Principle : Hydro dynamic capture.
Capacity : 118 LPM
Filter Element : SS-304 Screen Mesh.
Inlet : 3 Inch Clean Water Outlet: 3 Inch
Housing : 2mm Thick Aluminum
Efficiency of Filter : Above 90%
Source of Power : Gravitational force.

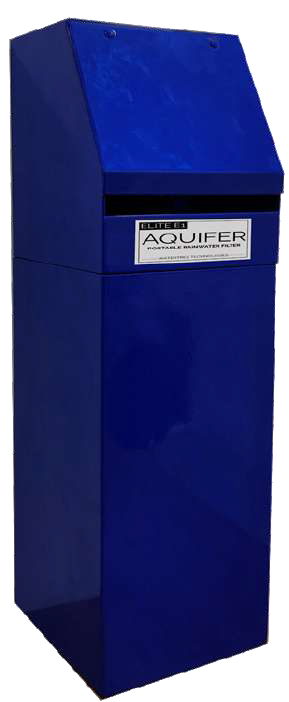

Super Aquifer E1
Super Aquifer E1 The portable Rainwater Harvesting Filter. Filtration is carried out in three stage filtration process. ELITE Aquifer-E1 is suitable for Individual households, Schools, and Smaller Roof area Buildings.
Description
Size : 9’’ L x 9’’ B x 24’’ H
Item Code : ELITE Aquifer-E1
Suitable up to area : 1200 SFT
Max : Intensity of Rainfall: 3 Inches/hr
Working Principle : Van der Waals forces, Surface charge attraction, Diffusion & Hydro dynamic capture.
Capacity : 110 LPM
Filter Element : SS-304 Screen Mesh, Pebble layer & Activated carbon layer for filtration.
Inlet : 3 Inch Clean Water Outlet: 3 Inch
Housing : 2mm Thick Aluminum
Efficiency of Filter : Above 95%
Source of Power : Gravitational force.

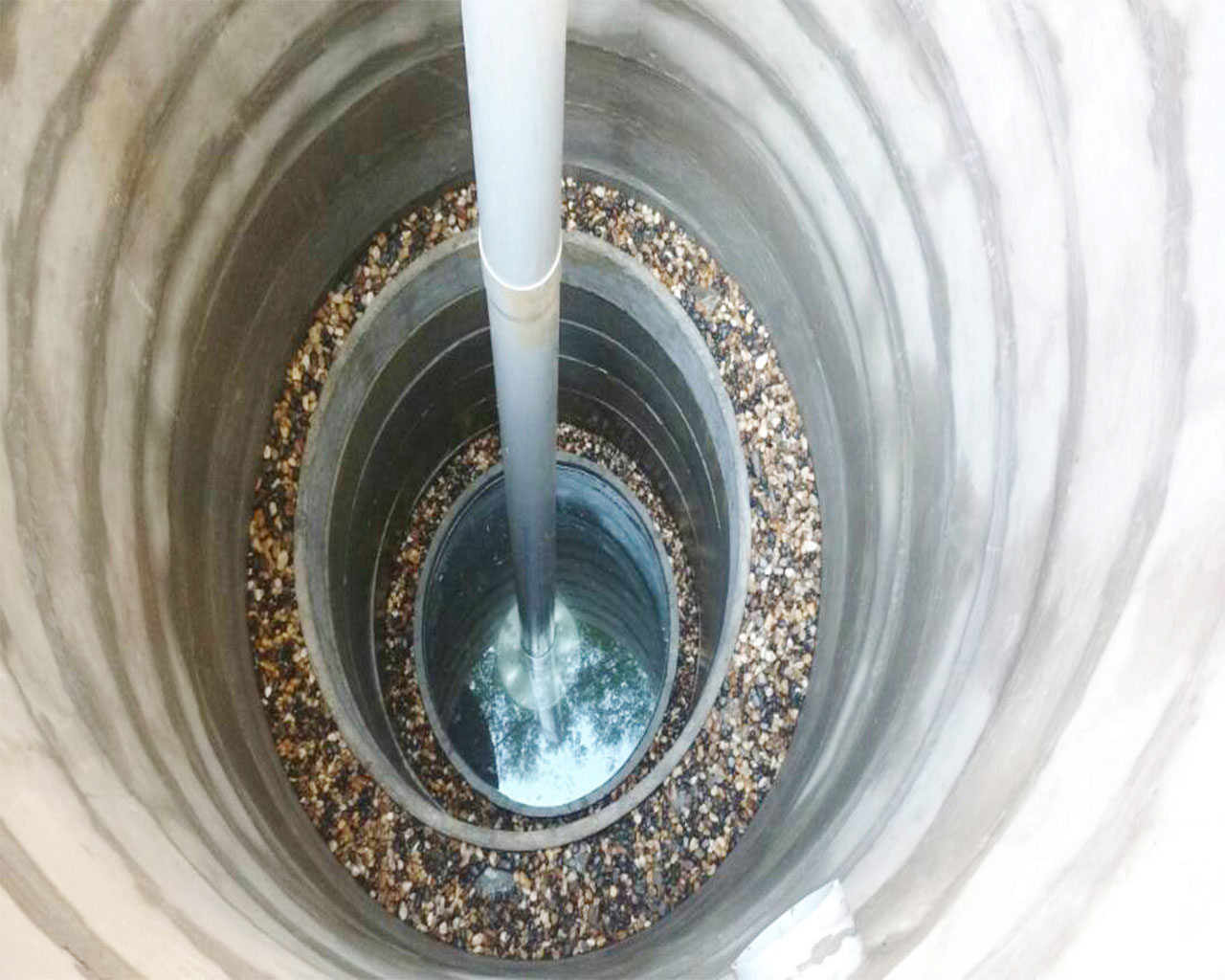

GRAND AQUIFER
GRAND AQUIFER is a robust Rainwater Harvesting Filter system also called as Injection well Filtration is carried out through Aquifer Filter & V’ Wire screen. GRAND AQUIFER is suitable for Large apartment complex, townships, campuses, commercial establishments, sites prone to flooding or severely affected by draught.
Suitable for Rain Water captured in the Non roof area + Roof area.
The system comes with silt trap+ pebble & Activated carbon filters
The Injection well designed shall have Dual “V” Screen to send water deep strata
Low maintenance cost
High water yield
Suitable for both upland & low lying areas
One time investment to ascertain enormous quantity of water to quickly penetrate rainwater into groundwater source.
